產品訂購

品牌：SunKun(三昆)

型號：SK-403-300D

訂購：不限數量

價格：面議

產品介紹

注意：所有網帶式固化機均可跟據客戶要求非標訂制，歡迎來電咨詢！

---

1、UV燈功率:3.0kw*4支(UV汞燈)
2、UV燈總長:400mm、弧長:300mm
3、UV波段主波峰:365nm
4、UV燈累時器單獨配置
5、強弱光強調節:75%、100%
6、鈑金燈箱安裝進口插片反射器
7、采用上排風系統
8、輸送材料:不銹鋼網帶穿間距穿不銹鋼軸
9、輸送寬度:300mm
10、輸送速度:0~5m/min(速度表)
11、入口高度:250mm
12、電源:380VAC50HZ(漏電開關)

1, UV lamp power: 3.0kw * 4 (UV mercury lamp)
2, the total length of the UV lamp: 400mm, arc length: 300mm
3, UV band main peak: 365nm
4, UV lamp chronograph is configured separately
5, strong and weak light intensity adjustment: 75%, 100%
6, sheet metal light box installation of imported insert reflector
7, using the upper exhaust system
8, conveying materials: stainless steel mesh belt wear spacing stainless steel shaft
9, conveying width: 300mm
10, conveying speed: 0~5m/min (speedometer)
11, the entrance height: 250mm
12, power: 380VAC50HZ (leakage switch)

---

1、聚光型設計,高聚光反光燈罩,瞬時干燥,速度特快;
2、燈箱設計的通風系統;
3、各燈皆可調節上下
4、輸送帶調速,輸送速度平穩可調;
5、傳動網帶調整裝置,跑偏;
6、燈管異常保護裝置
三昆科技有限公司，專業UV光固機、工業烤箱、IR隧道爐、試驗電爐、UV燈管、UV變壓器等制造商。

1. Concentrating design, high concentration reflector, instant drying, fast speed;
2. Ventilation system designed for light boxes;
3, each lamp can be adjusted up and down
4. Conveyor belt speed regulation, conveying speed is stable and adjustable;
5, the transmission network belt adjustment device, deviation;
6, lamp abnormal protection device
Sankun Technology Co., Ltd., a professional manufacturer of UV curing machines, industrial ovens, IR tunnel furnaces, test furnaces, UV lamps, UV transformers, etc.

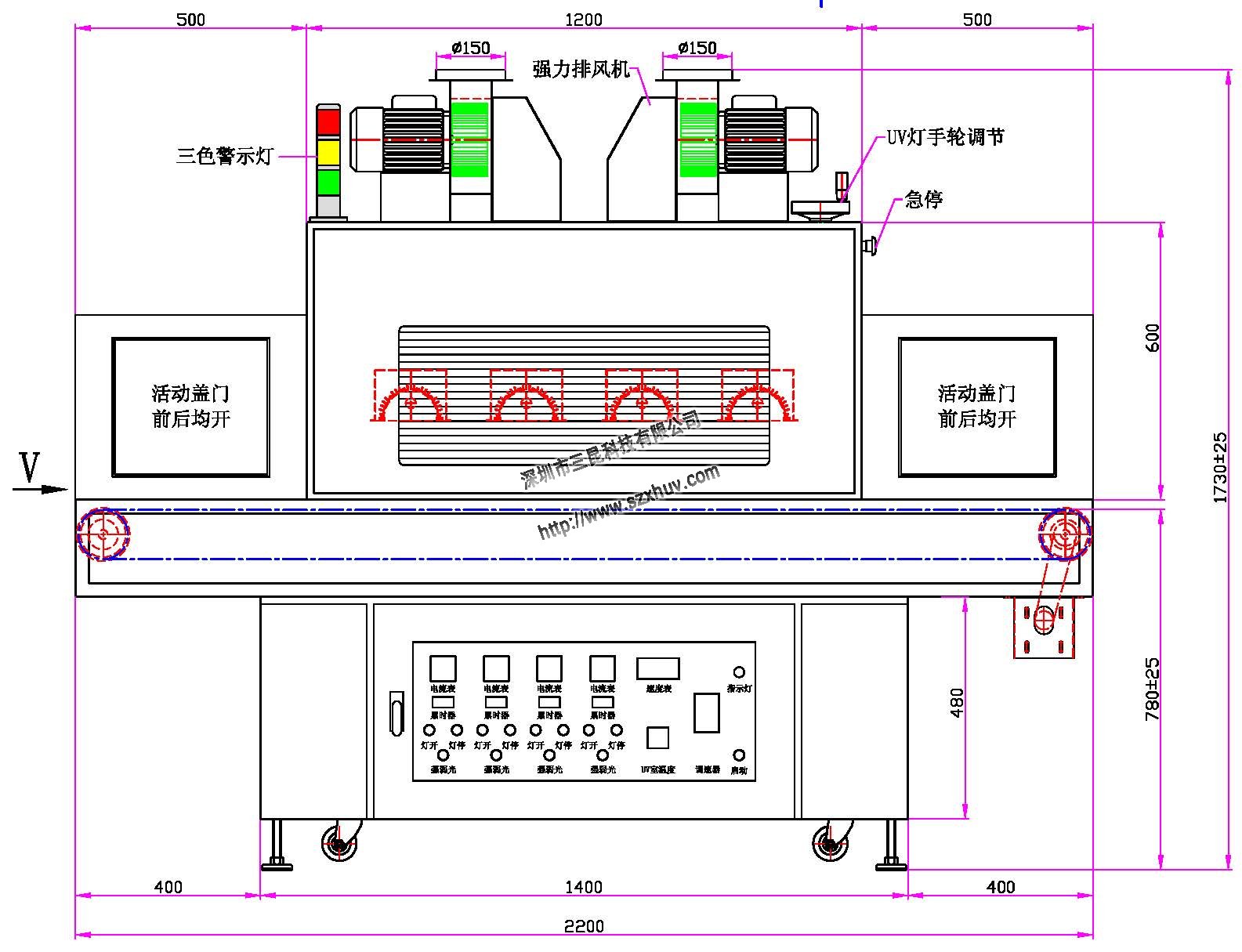

產品平面設計圖

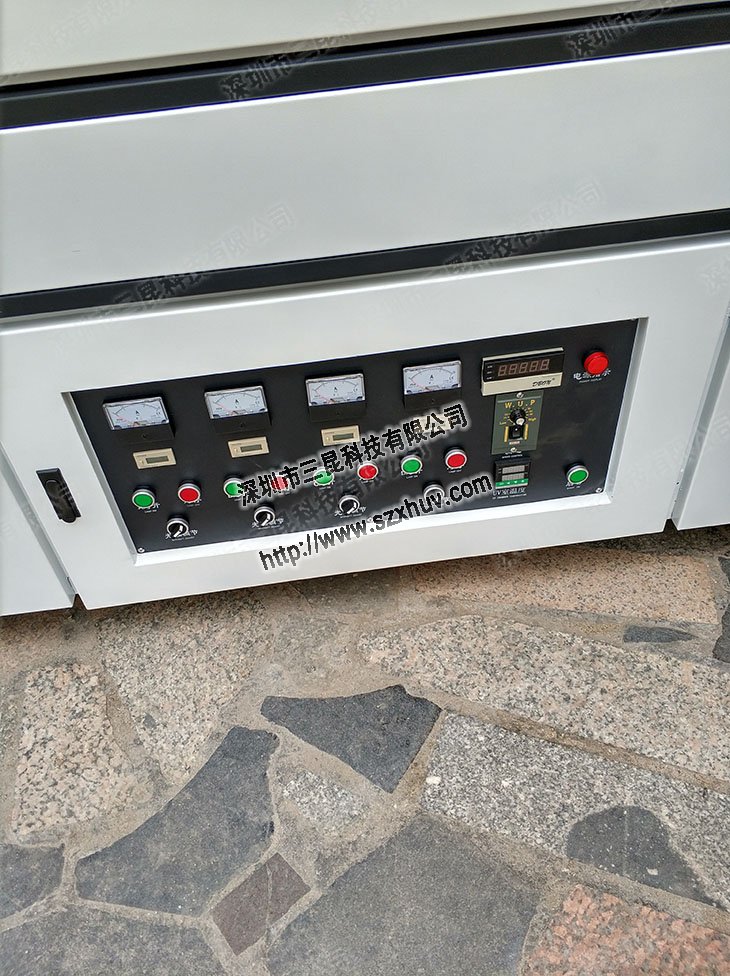

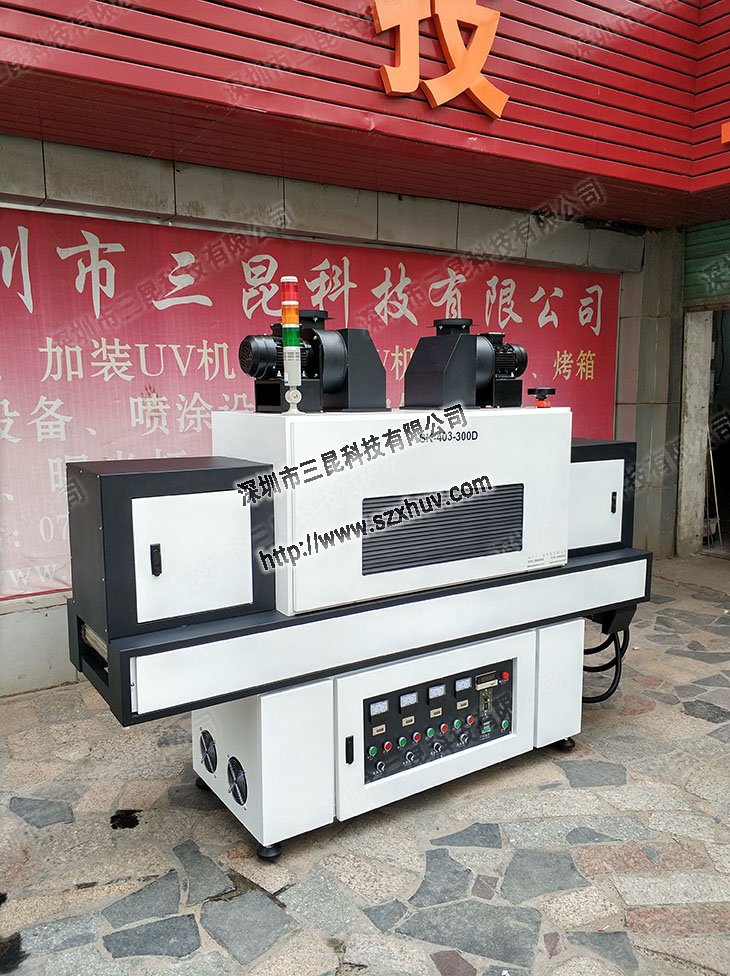

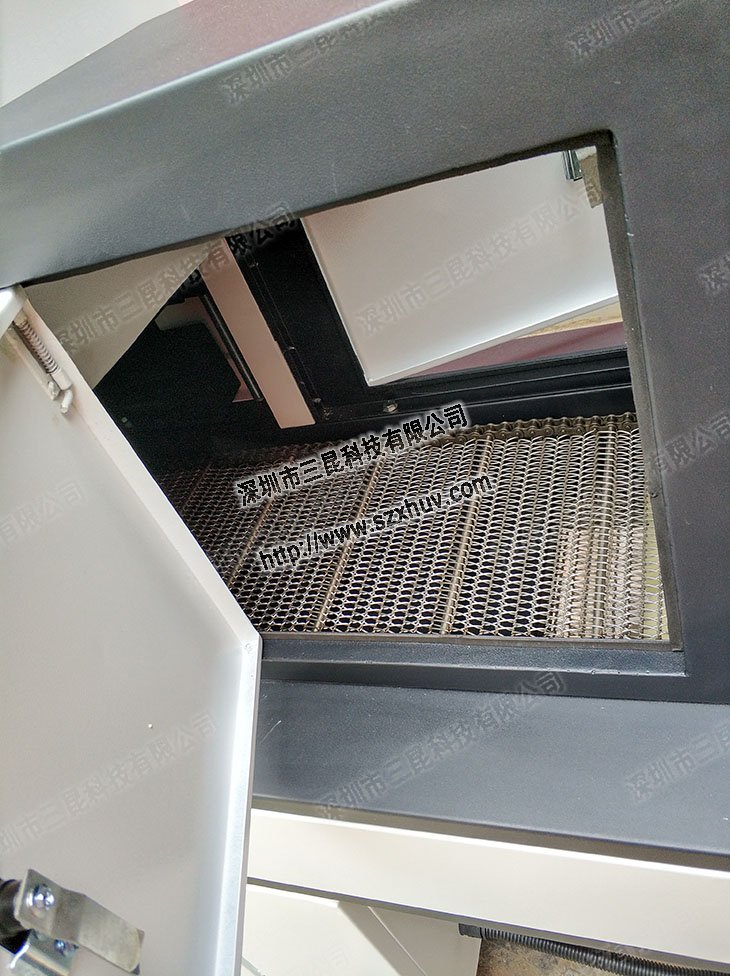

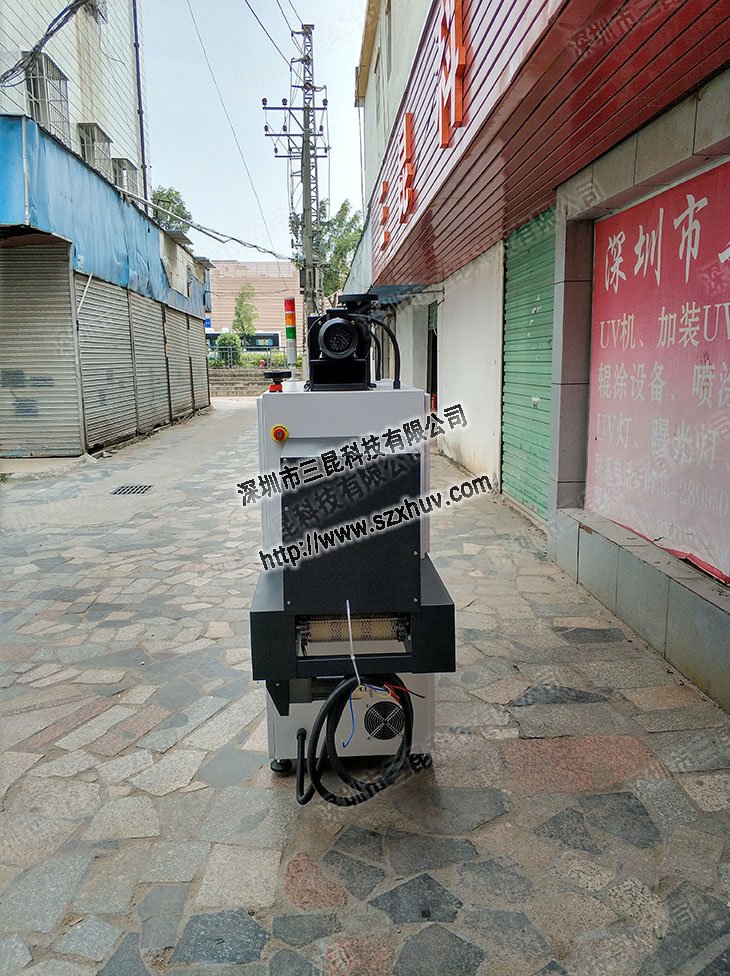

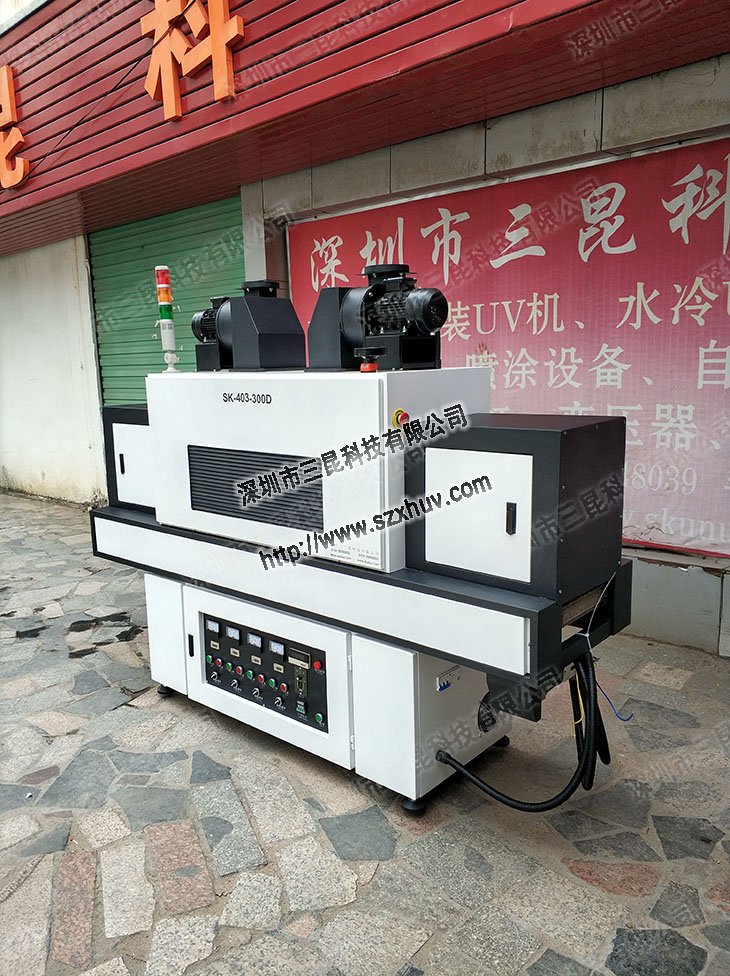

產品出貨實拍圖

產品維護與保養

產品使用注意事項
